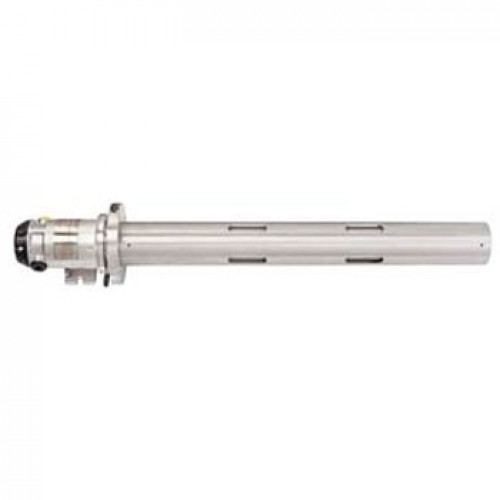

The GD10PE is designed for critical applications involving large volumes of air with high velocity. In places where you need fast reliable detection of low gas concentrations, GD10PE is in a class of its own.
The versatile GD10PE is suitable for monitoring, among others, the HVAC air intakes of living quarters, temporary refuges and local equipment rooms. In addition the ventilation air and combustion air intakes of gas turbines can be monitored along with the ventilation air extract duct, the only location where you can guarantee to detect a gas leak on a turbine package.
With a measuring range of 0-20% LEL the GD10PE is 5 times more sensitive than standard point detectors.
The GD10 range of infrared gas detectors differ from all other models, because they utilise silicon based solid-state infrared sources. The complete optomechanical design and construction is so stable that an ultra fast speed of response can be achieved whilst providing unparalleled service life and detector stability, thus saving on maintenance and service costs.
An industry standard HART® interface is used for configuration of the levels as well as access to maintenance data.
- High sensitivity flammable gas detection for HVAC applications
- 15 years warranty IR sources – solid state optics
- Individually heated sapphire mirror (not conducted heat)
- No field recalibration
- Dual skin weather protector – no filters / gauzes or sinters
- Planned maintenance with HART
- FPSO / FSO / MOPU
- Oil & Gas Offshore
- Marine / Jack Up Rigs
- Oil & Gas Onshore
- Chemical and Petrochemical Plants
- Waste Disposal
- Gas Turbines
- General Industry
