Description
Overview

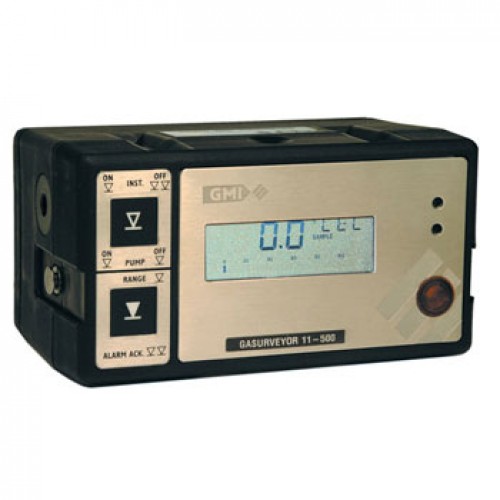

The Gasurveyor 11-500 compliments both the Gascoseeker, Gasurveyor 3-500 and the Oxygas instruments with a similar performance, measuring % LEL and % volume flammable hydrocarbons, but with the addition of oxygen.
The Gasurveyor 11-500 is designed for either gas/air or gas/nitrogen/air purging, with the ability of the Gascoseeker and the addition to measure oxygen during a nitrogen purge.
In accordance with the Gasurveyor 3-500, the 11-500 also has the following features:
- Automated zero during start-up
- Manually selectable purge mode
- Optional rechargeable batteries
- Optional gas alarms (not recommended if using as a purge instrument)
The two-button operation means the Gasurveyor 11-500 is easy to use and operator training can be conducted quickly. The rugged design allows the Gasurveyor 6-500 to be used in harsh environments. The Gasurveyor 6-500 is also fully compatible with our range of calibration software and equipment.
Features:
- Automatic hydrocarbon range selection
- Manual selection of purge mode
- Simple 2-button operation, allowing user access to all features
- Automatic zero
- Gas/air and gas/nitrogen/air purge mode
- Hydrocarbon resolution to equivalent of 50 ppm methane
- Accurate, robust and extremely reliable instrument
- Integral pump with flow-path protected by water filter
- Rugged carbon loaded polypropylene case, sealed to IP54 rating and suitable for outdoor use
Applications:
- Leak detection
- Bar hole survey
- Gas/air or gas nitrogen air purging
- Gas escape detection
- Petroleum installations
- Hot work permitting
- Confined space (only hydrocarbon and oxygen gases)
Package includes:
- Gasurveyor 11-500 Instrument
- G500 Carry Case
- 4mm Hex Driver
- User Handbook
- 1.5M Tygon Tubing
- 35cm Solid End Probe
- Probe Handle Assembly c/w Filters
- Cotton Filters – 2 Boxes of 10
- Sample Line Adapter
- Shipping List
- LR20 Alkaline Battery x 4 *Dry Cell Instruments Only*
