Copperhead, Barramundi, Scorpion – Outback Critters? No, Permanent Reference Cells


Anode Engineering manufacture their own range of permanent reference cells. Sometimes called reference electrodes, these specially designed electrochemical cells are designed with a reproducible potential, allowing it to be used as a reference point for measuring the difference between two metal / electrode voltages. This difference will indicate whether the asset (constructed of a metal) has sufficient cathodic protection to prevent or arrest corrosion. The reference cell chosen for the purpose of assessing the performance of the electrolytic corrosion prevention system is determined by the metal and electrolyte the asset is immersed in. For instance, an asset in a sea water environment would require a silver / silver chloride (Ag/AgCl) cell. The more common one used for assessing corrosion prevention systems in soil is a copper / copper sulphate cell (Cu/CuSO4). Where a less accurate measurement is required, possibly where only fault conditions need to be determined, a stabilised Zinc reference cell would suffice. Anode Engineering produce a range of reference cells to accommodate these and other conditions.

The range also includes the reference cells for measuring potentials in concrete. Anode Engineering specialise in not only providing the equipment to measure potentials, but also to monitor and measure corrosion rates.

Anode Engineering is responding to market requests and has a range of options to enable the asset owner to monitor corrosion prevention and corrosion systems remotely.

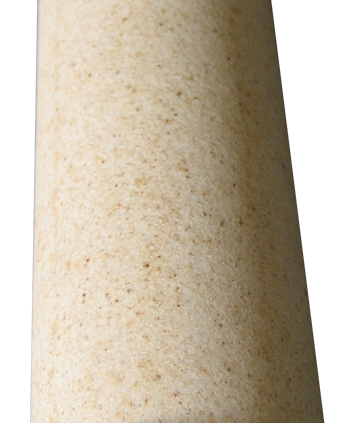

Anode Engineering’s range of reference cells are illustrated below.
For datasheets and further information click here.
