(406 – 1219 MM)

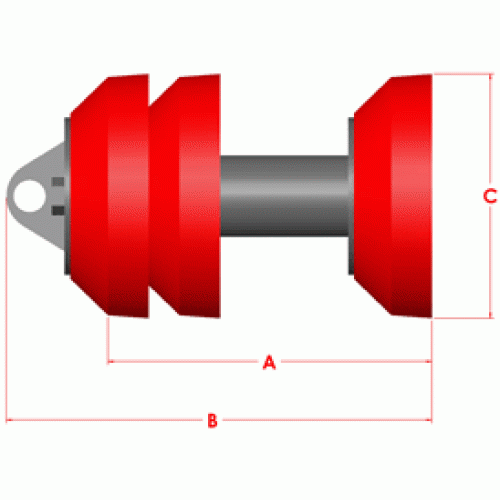

The basic three cup UM pigs are designed for batching of dissimilar
fluids and are typically used for longer distance applications. The UM
series is available in three versions. The three cup design of this pig
provides a positive seal between fluid interfaces and is widely used for
light cleaning of pipelines or batching/separation operations.
Designed to traverse 1.5D bends.
- Transmitter housing
- Gauging plates
UM pigs are equipped with Apache Series M cups manufactured
from high quality Reliathane. The large wear surface of the cup promotes
longer life while the product pressure keeps the cutting edge firm
against the pipe wall. Standard bumper noses prevent damage to both the
pig and in-line auxiliary equipment. All Apache 16”-48” pigs are
manufactured with by-pass ports. The ports have threaded plugs that can
be removed if by-pass is required.
