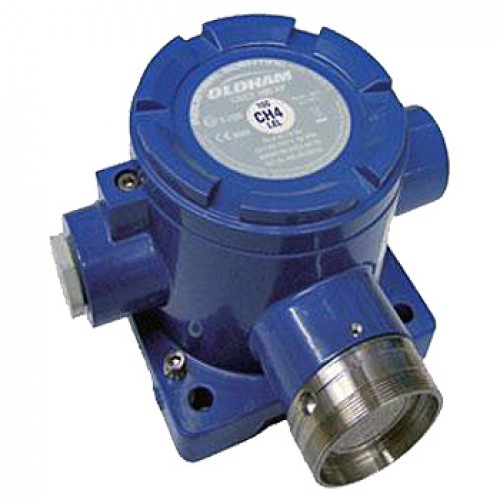

Designed for the detection of explosive gases, toxic gases or oxygen, this detector comes with a Wheatstone bridge output (OLC 100) or 4-20mA output (OLCT 100). Whatever your application Oldham offers a solutions: catalytic, electrochemical, semiconductor, or poison control version. ATEX approved, these detectors are available in explosion safe or intrinsically safe versions. In addition to this range the OLC/OLCT 100 offers an infrared sensor, which allows it to be used in more severe environmental conditions, where the presence of poisons could harm the use of a catalytic sensor. With a 3-year warranty on the sensor and electronics, the OLCT 100 XP-IR will provide reliability and extended lifetime. With this new line of detectors, Oldham broadens its product range with products that combine reliability, durability and ease of use.
SIL 2 certified according to EN 50402, the 100 series is very safe. As an example the Probability of Failure on Demand (PFD) of combustible versions is 1 out of 418 for the catalytic version and 1 out of 2857 for the infrared version.
- OLCT 100 XP: Explosion-proof version and equipped with a catalytic, electrochemical or semiconductor sensor, for detection of explosive, toxic gases or oxygen.
- OLCT 100 IS: Intrinsically safe version and equipped with an electrochemical sensor for detection of toxic gases or oxygen.
- OLCT 100 XP IR: Explosion-proof version and equipped with an infrared sensor for detection of explosive gases or CO2.
- OLCT 100 XP HT: High temperature explosion-proof version, for detection of explosive gases up to 200°C.
- 4-20 mA analog transmitter without display
- SIL2 capability for LEL, O2, CO, H2S, NH3, CO2
- Detects combustible, toxic or refrigerant gases and O2
- Available with electrochemical, infrared or semi-conductor sensors
- Designed for industrial applications
- Available in explosion-proof or intrinsically safe versions, and stainless steel
- New XP IR infrared sensor or catalytic sensor
- A high-temperature version allows operation up to 200°C
- Steel Mills
- Petrochemical Facilities
- Chemical Industry
- Pharmaceutical Industry
- Food Industry
