Description
Overview:

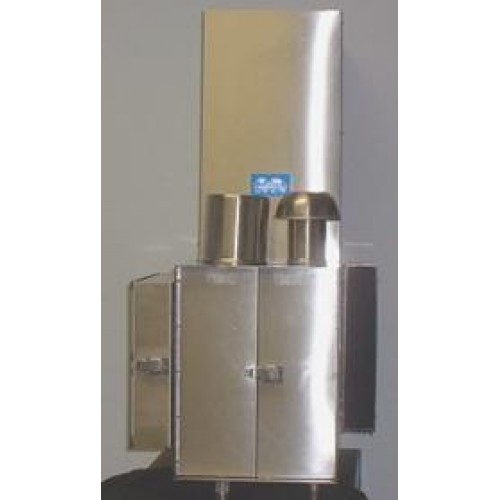

The Model 5120 Thermoelectric Generator is a reliable, low maintenance source of DC electrical power.
Global Thermoelectric’s Model 5120 Thermoelectric Generator contains no moving parts. It is a reliable, low maintenance source of DC electrical power for any application where regular utilities are unavailable or unreliable.
Specifications:
Power Specifications @20°C:
120 Watts @ 6.7 Volts
108 Watts @ 12 Volts
108 Watts @ 24 Volts
108 Watts @ 48 Volts
Fuel Consumption:
*All Natural Gas is Std. 1000 BTU/SCF 37.7 MJ/Sm³ gas.
Natural Gas:
8.8 m³/day (311 ft³/day)
Propane:
11.4 l/day (3.0 US gal/day) / 5.8 kg per day
Max. Supply Pressure:
1724 kPa (250 psig)
Min. Supply Pressure:
103 kPa (15 psig)
Dimensions:
762 x 381 x 991 mm (30 x 15 x 39 inches)
Weight:
61 kg (135 lb)
