Description
Overview:

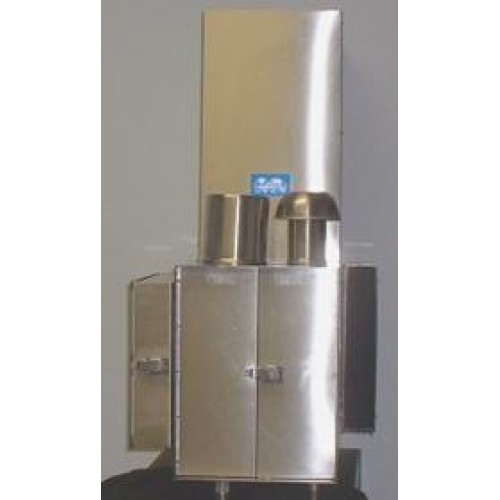

The Model 5060 Thermoelectric Generator is a reliable, low maintenance source of DC electrical power.
Global Thermoelectric’s Model 5060 Thermoelectric Generator contains no moving parts. It is a reliable, low maintenance source of DC electrical power for any application where regular utilities are unavailable or unreliable.
Specifications:
Power Specifications @20°C:
60 Watts @ 6.7 Volts
54 Watts @ 12 Volts
54 Watts @ 24 Volts
24 Watts @ 48 Volts
Fuel Consumption:
*All Natural Gas is Std. 1000 BTU/SCF 37.7 MJ/Sm³ gas.
Natural Gas:
4.4 m³/day (155 ft³/day)
Propane:
5.7 l/day (1.5 US gal/day) / 2.9 kg per day.
Max. Supply Pressure:
1724 kPa (250 psig)
Min. Supply Pressure:
103 kPa (15 psig)
Dimensions:
635 x 381 x 991 mm (25 x 15 x 39 inches).
Weight:
45 kg (100 lb)
