(406 – 1219 MM)

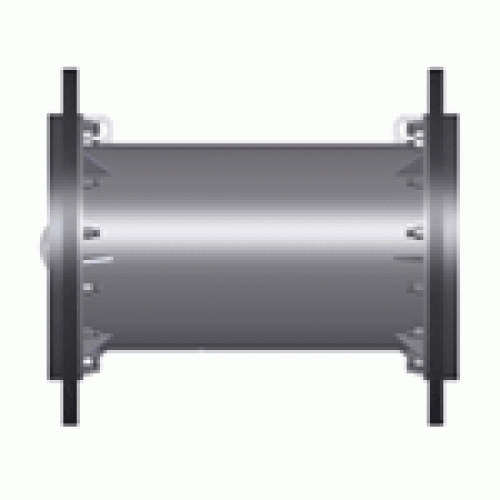

MD series, in sizes 16” and larger, are equipped with either two or
four disc combinations, bolted to a rugged steel mandrel. Typically, the
longer the pig run the more discs you would install.
Designed to traverse 1.5D bends.
- Transmitter housing
- Gauging plates
- Sealer discs
All Apache 16”-48” pigs are manufactured with by-pass ports. The ports
have threaded plugs that can be removed if by-pass is required.
