Description
Overview:

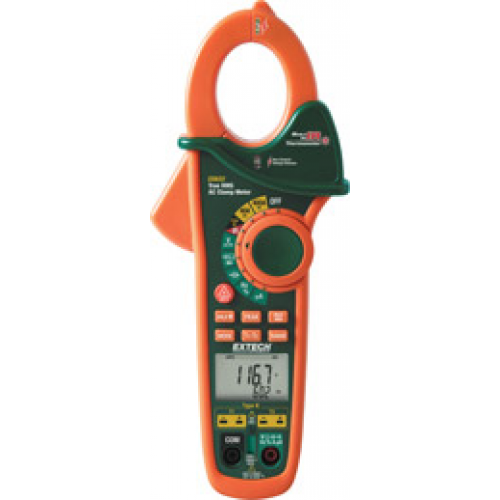

AC Clamp-on meter with built-in dual Thermocouple inputs, NCV Detector and InfraRed Thermometer.
Features:
- True RMS measurements for accurate AC Voltage and Current measurements.
- Dual type K thermocouple input with Differential Temperature function (T1, T2, T1-T2).
- Built-in non-contact IR Thermometer with laser pointer for locating hot spots (up to 518°F/270°C).
- Built-in non-contact Voltage detector with LED alert. DC µA multimeter function for HVAC flame rod Current measurements.
- Data Hold plus fast Peak Hold of current surges during motor startup. 40,000 count multimeter functions for DC Voltage, Resistance, Capacitance, and Frequency for high resolution over wider ranges.
- Measures motor capacitors to 40,000°F. 1.25″ (32mm) jaw opening for conductors up to 500MCM.
- Rugged double molded housing. Auto power off with audible alert and disable function.
- Autoranging with manual override.
- 8 to 1 distance to target ratio.
- Complete with CAT III-600V, double molded test leads, 9V battery, two general purpose Type K bead wire probes and case.
