(406 – 1219 MM)

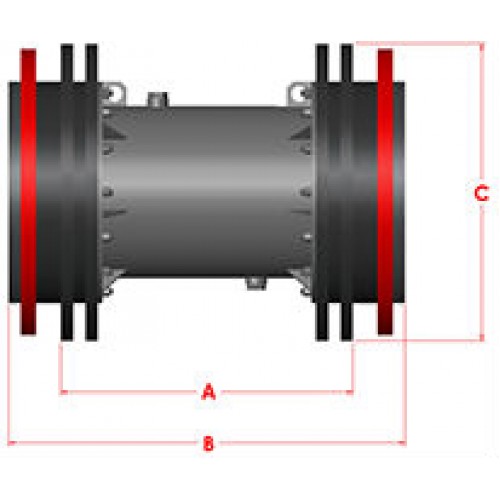

The ED version, with a combination of four sealing and two guide
discs, offers a sealing arrangement suitable for separation of
dissimilar fluids or for dewatering during hydrostatic testing. Standard
bumper noses prevent damage to both the pig and in-line auxiliary
Designed to traverse 1.5D bends.
- Flange and block brushes
- Transmitter house
- Gauging plates
- Sealer discs
- Guide discs
- Bumper noses
All Apache 16”-48” pigs are manufactured with by-pass ports.
The ports have threaded plugs that can be removed if by-pass is required.
